Zimmatic By Lindsay Products

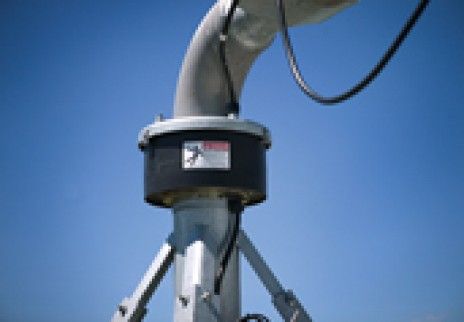

The collector ring is mounted externally, eliminating water flow restriction. A major advantage over the internal designs on other irrigation systems. The unit is entirely encased in fiberglass and features dual sliding contacts that ensure uninterrupted power.

The 7500P's pipes have been manufactured to meet the Zimmatic standard of quality and tested for durability.

• Diameter of 11.4 cm
• High tensile strength steel provides longevity
• Watertight seal Flow-drilled outlets for increased strength and uniformity

Quality materials at an affordable price.

• Exclusive truss design and truss rod pockets
• Crossed tower braces provide more support for torsional loads
• Exclusive Uni-Knuckle span connection offers full support, stress-free flexibility, and external design to eliminate flow restriction
• 12.7 cm pivot point with compact footprint

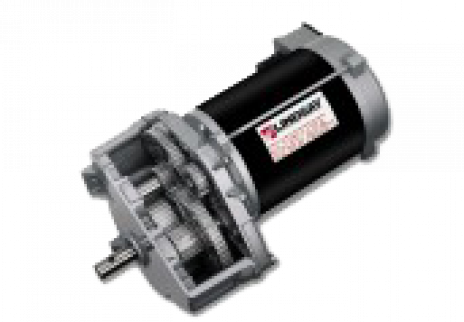

With a standard 43 RPM center drive motor, the 7500P features the fastest rotation speed of any center drive available.

• Center pivot drive motors use Zimmatic's proven trip reduction spur gear technology
• 7500s AT Gearbox features the industry's largest expansion chamber
• The AT Gearbox's output shaft is shorter than the competition eliminating overhang load on bearings

• High tensile strength 11/16-inch truss rods
• 8500P exclusive truss design and truss rod pockets
• Full complement of tower options- low, standard, medium, or high-clearance
• Crossed tower braces provide more support for torsional loads
• Zimmatic's exclusive Uni-Knuckle span connection offers full support stress-free flexibility, and external design to eliminate flow restriction
• Optional 8500P compact pivot point allows use of competitive pivot pads with a smaller footprint, reducing installation costs.
• Attractive, uniformly arching spans

The 8500P's pipes have been tested to ensure quality and meet the Zimmatic standard of durability.

• Diameter of 6 5/8 inches
• Competitive 12-guage pipe and tower joints
• Zimmatic's 9500P pipeline can be used in place of the 8500P pipe for machine flexibility and ease of service
• High tensile strength steel provides longevity

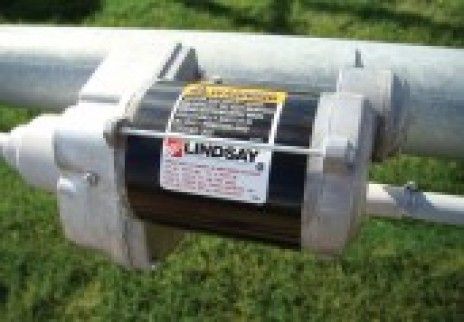

With a standard 43 RPM center drive motor, the 8500P driveline matches Zimmatic 8500P's standard rotation- the fastest rotation speed of any center drive available.

• Center drive motor uses Zimmatic's prove triple reduction spur gear technology- it's the same high-efficiency drive you know and trust
• High strength 12-guage steel drive tubes
• All tracking solutions are available, including all tire and rim combinations, and the Trax drive system
• Rugged AT Gearbox
• The industry's largest expansion chamber
• Includes a register on the output flange for additional wheel support, as well as an externally gusseted bell-housing for increased strength
• Shorter output shaft than the competition, eliminates high overhand load on bearings

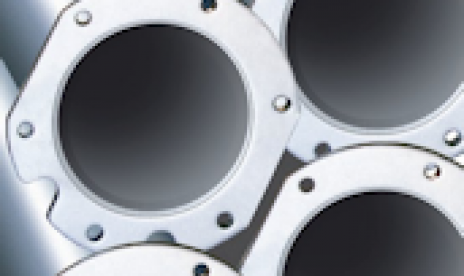

Zimamtic's standard 6 5/8 inch (168 mm) pipeline is more than 10% thicker than the competition's best offering, which means additional strength and stability - the most substantial in the industry.

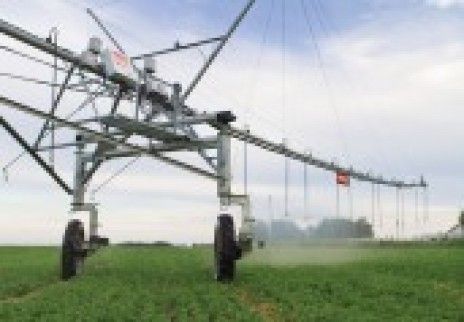

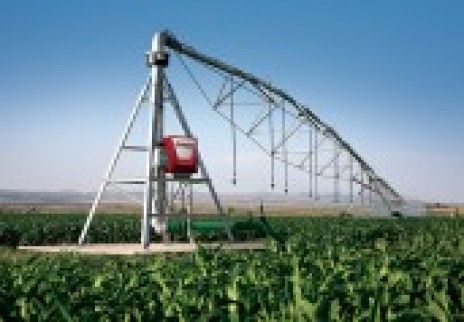

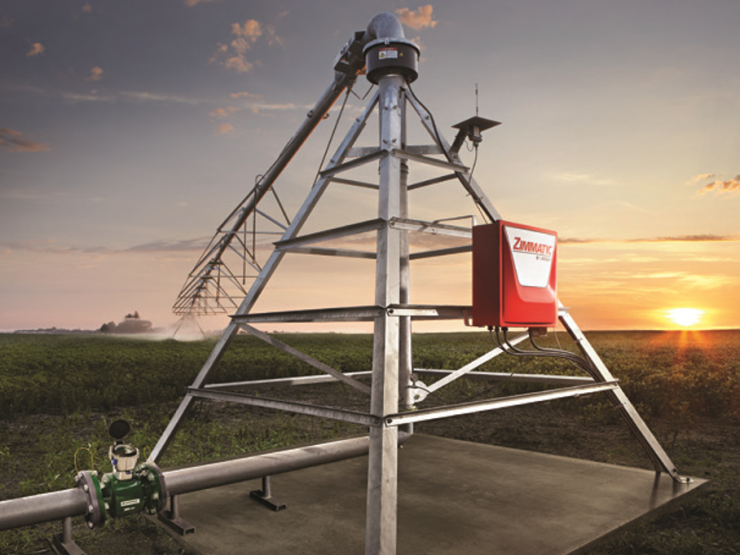

Hot-dipped galvanized steel legs and heavy-duty cross-members form a rugged foundation. Exclusive collector ring is mounted externally, eliminating water flow restriction.

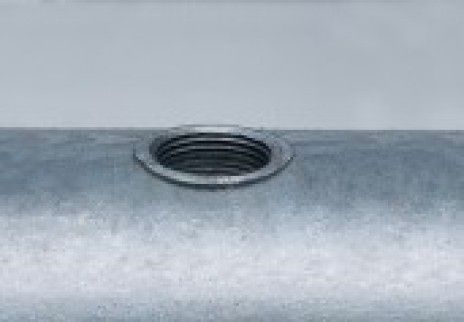

Formed sprinkler outlets are part of the pipeline, ensuring precisely matched threads for a watertight seal. Traditional welded-on couplings can result in leakage and rusting.

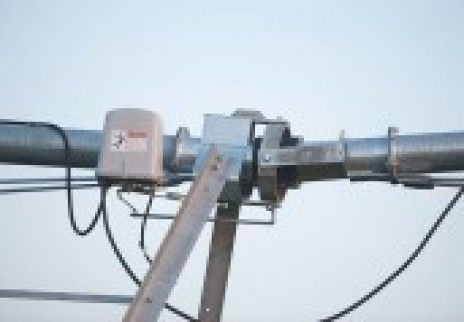

Exclusive Uni-Knuckle span connector features components that are mounted externally to eliminate flow restriction.

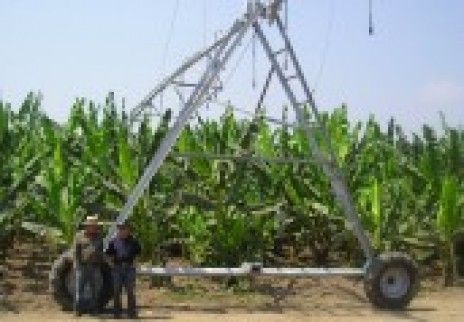

The top-of-the-line 9500P offers the most tower height options of any Zimmatic irrigation system, so you can choose the tower height that fits any crop -from corn to cane:

• Low
• Standard
• Medium
• High
• Ultra-High

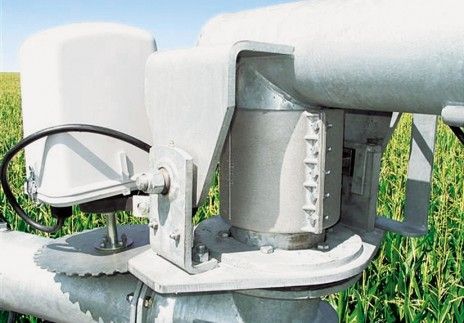

As an alternative to an external hose that has to bend every time the corner moves, Zimmatic has developed the 9500CC's High-Flow joint, a custom joint that transmits water without the need for a leak-prone hose. In addition to greatly reducing the chance of leakage, the durable joint's simplicity results in reduced water friction loss and lower pumping costs.

This new guidance option adds even more flexibility to the highest performing corner on the market. With the GPS-guided 9500CC, buried wire is eliminated. This saves time and labor during installation, and allows for easier path adjustment if needed in future growing seasons. All of the additional flexibility comes without sacrificing accuracy - 9500CC GPS Corner Guidance utilizes an RTK correction signal from its built-in base station, providing sub-inch repeatability year after year, with no need for additional network subscription costs.

This familiar, rugged "H-frame" tower features high-strength columns and dual cross-members. All parts are common, and may be assembled in either the lead or lag position to maximize field coverage.

The 9500CC's heavy duty gearbox and variable-speed motor allow the corner arm to move continuously in addition to providing fast (43 rpm) speeds for chemigation and frequent water applications.

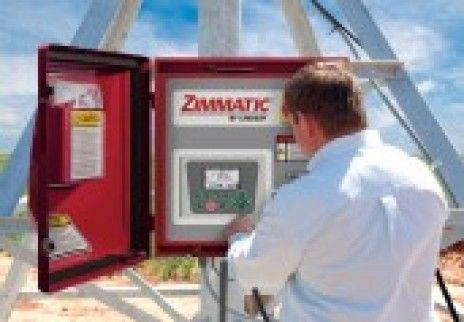

• Vision for laterals user-friendly design, built specifically for lateral irrigation - allows you to automatically control your system with a touch of a button up to 15 times faster to program than other competitive models.
• Easy to use interface, quick view of key information
• Patent pending EZ Water Wizard saves water and labor by automatically varying water rates - no area is over or under watered
• Precise control with GPS positioning Up to 20 water zones can be created in just a few steps

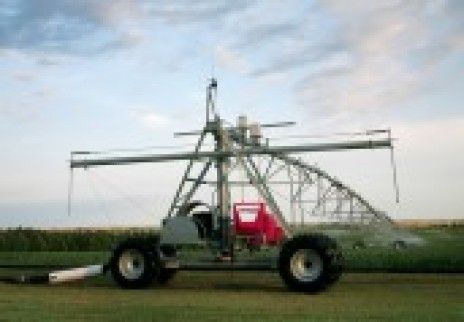

• h a large-diameter hose attached to a pressurized mainline
• Pivot and/or towing options for use on adjacent fields for increased coverage area
• Uses 2-wheel or 4-wheel cart (depending on field size) with four-, six-, and eight-inch hose (102, 153, 203 mm)

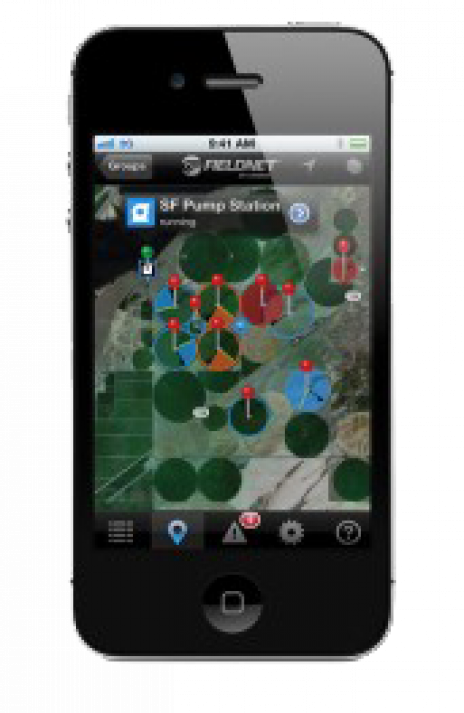

Map view provides system insights. Helpers and 3rd party vendors can use the "location" feature to find fields.

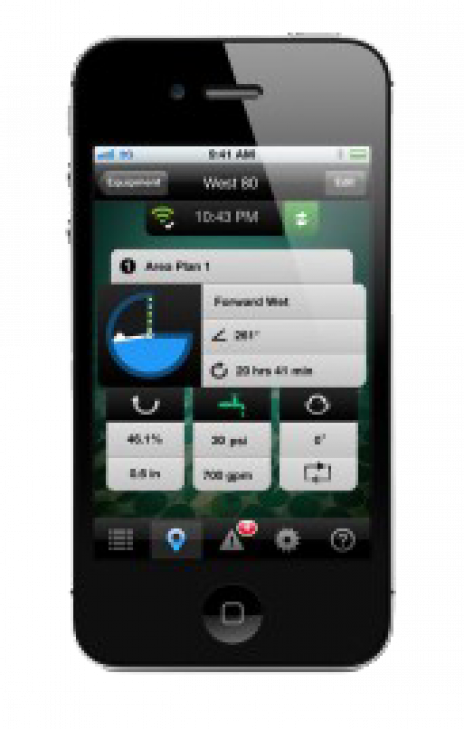

Quickly control pivots and laterals
Wizard guides users through the selection options
Monitor status of pivots and laterals:

• Operational status
• Irrigation start location
• Current location in the field
• Irrigation stop location
• Pressure, flow, and runtime

• Start, Stop, and change Direction
• Adjust irrigation rates
• Control water on and off
• Set automatic stop position

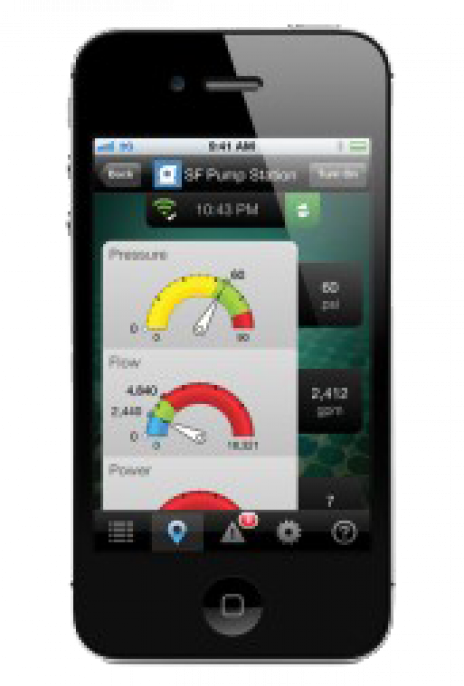

View pump stations status:

• Monitor pressure
• Monitor flow
• Monitor inlet pressure
• Monitor water level
• Monitor power usage
• Control pumps

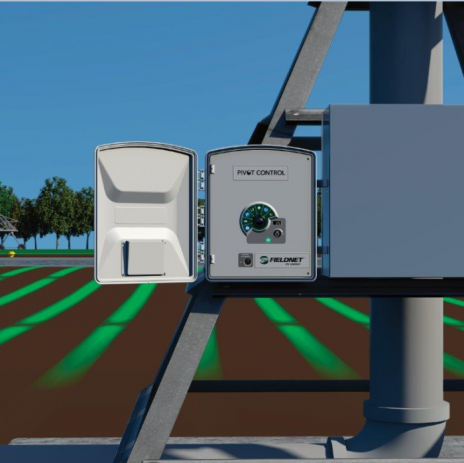

This new controller is the economical way to upgrade existing pivots giving growers high-performance full remote control. Pivot Control can change the way growers manage their irrigation by using wireless communication to enhance the efficiency and effectiveness of their whole operation. It's compatible with almost any pivot, providing a single consistent irrigation experience.
